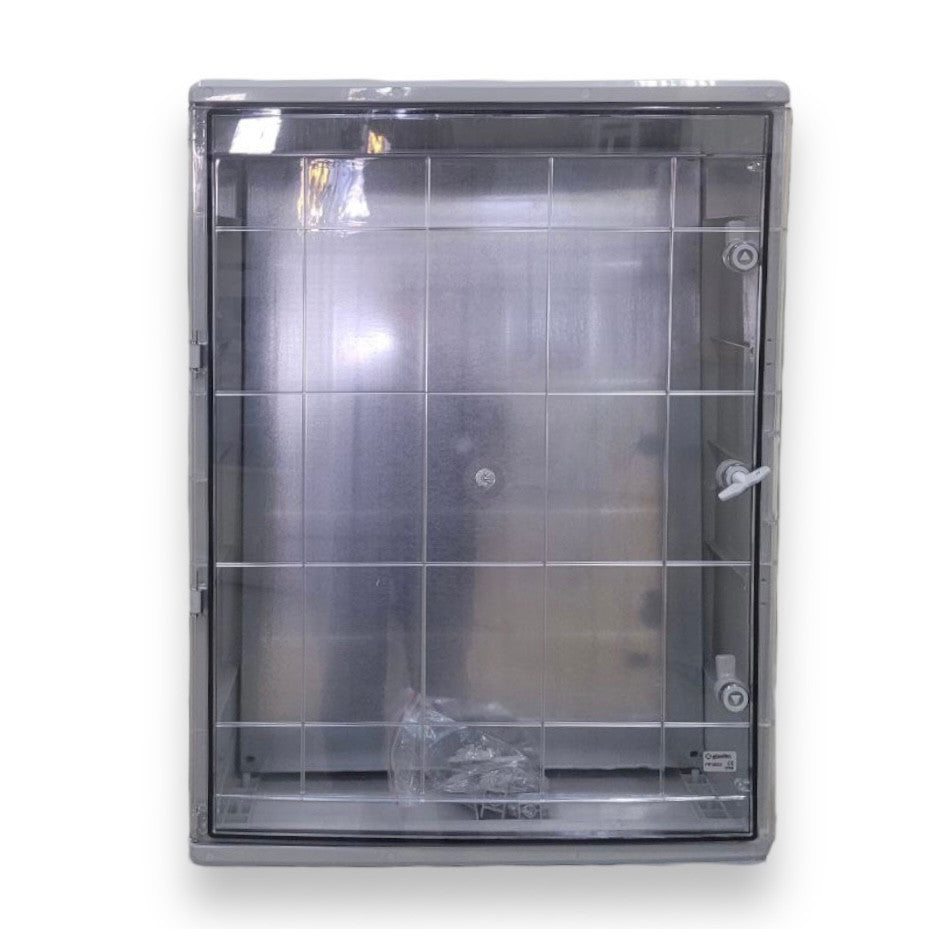

Plastic cabinet, transparent doors, dimensions 600x800x260mm, IP65, PP3022 Plastim
New waterproof plastic cabinets manufactured by the Turkish company Plastim open a new chapter in the use of plastic protection cabinets for automation tasks and electrical power distribution.
-
Metal reinforcements with metal pin
-
New design of the cabinet with reinforcements in the corners and greater thickness of the doors and the product in general.
-
Extended temperature range, in which the protector maintains all its enhanced properties -35/+60C
- Galvanized metal mounting panel, lightweight and fully corrosion-resistant
- can be equipped with transparent doors and DIN rails with metal reinforcements;
MAIN TECHNICAL FEATURES
- Mounting panel: made of 1 mm thick galvanized steel
- Material: HB ABS without halogens + polycarbonate (doors).
- Width: 600 mm
- Height: 800 mm
- Depth: 260 mm
- Color: RAL7035 light gray
- Protection: IP65, IK08
- Nominal voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
- Weight: 13.50 kg
