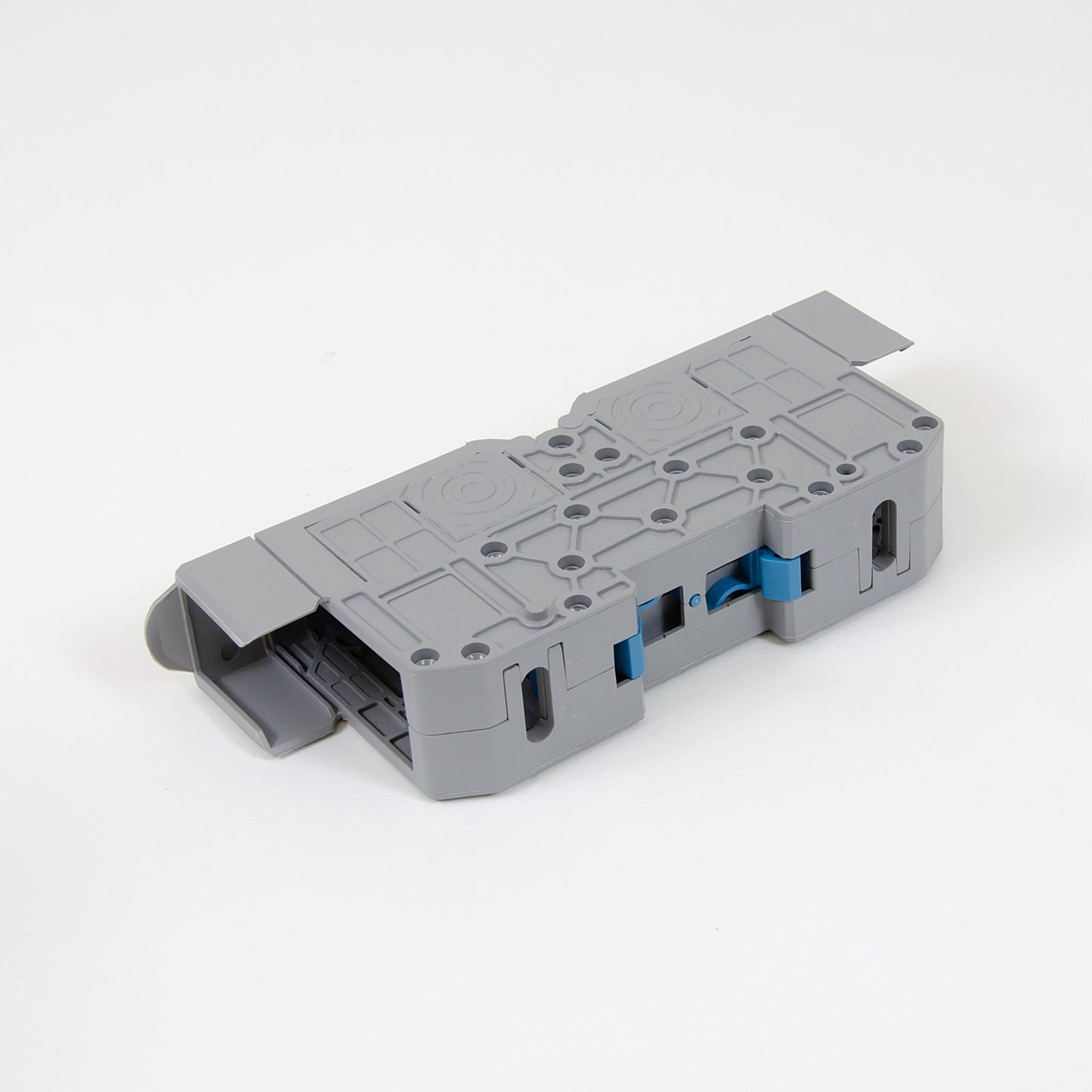

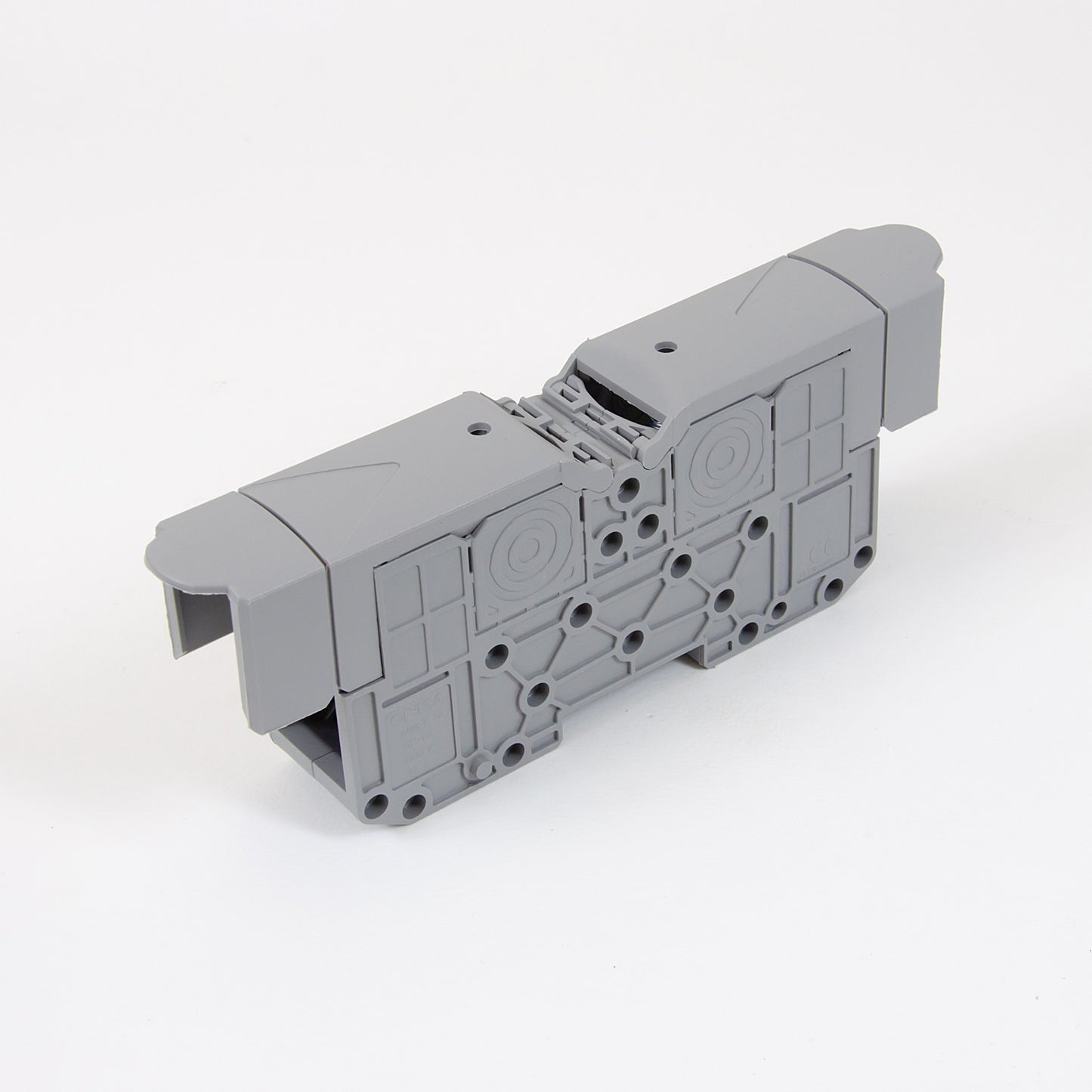

ONKA 70mm2 M8 DIN Rail Terminal Block with Protective Cover, Gray, 1030045
- Regular price
- €17,28
- Regular price
-
- Sale price
- €17,28
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

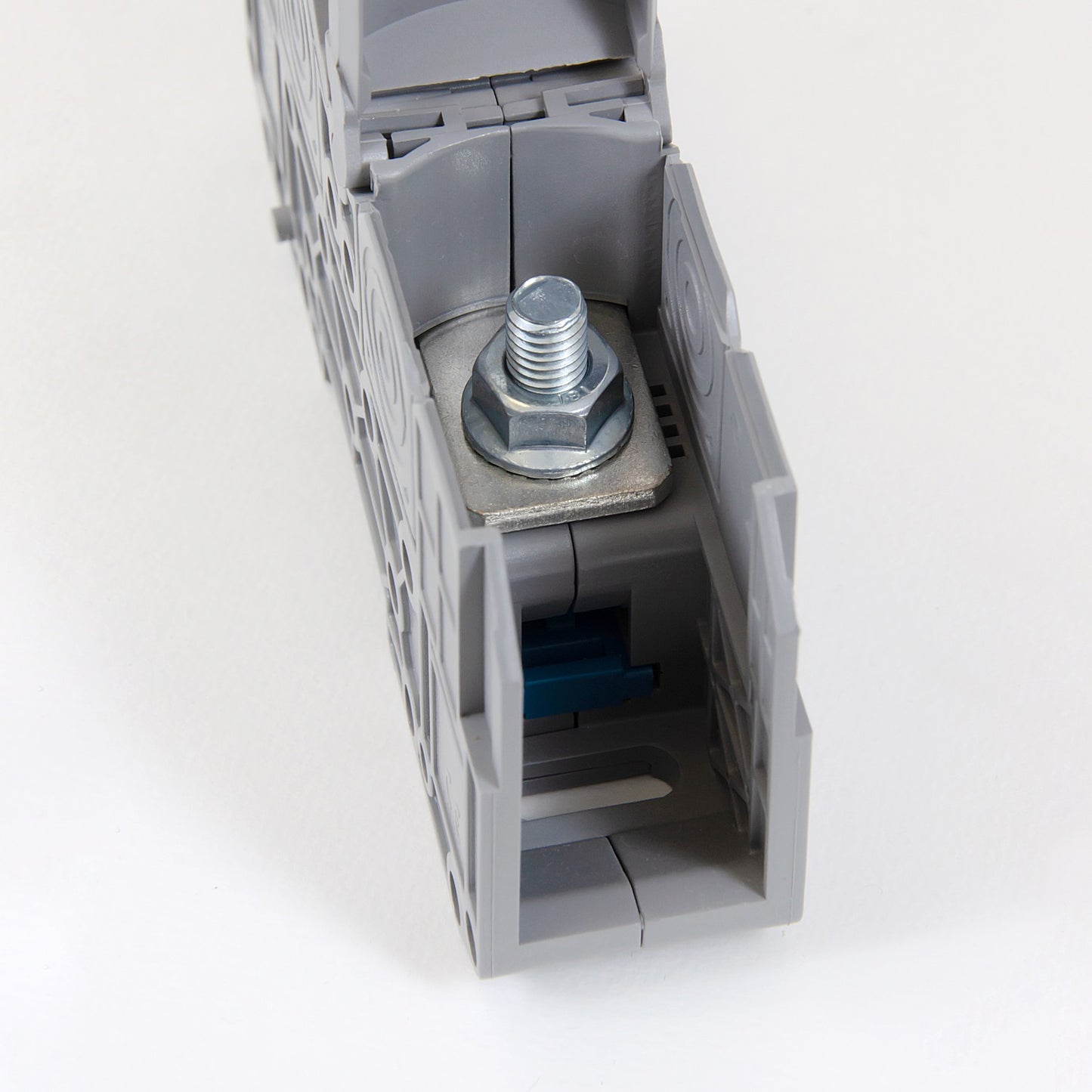

M8, 70mm2, threaded connector for busbar / DIN rail terminal with protective cover, gray, ONKA, made in Turkey
ONKA's compact installation rail connectors offer great possibilities for connecting any cable of different cross-sections. The transparent housing makes it easy to check the correct cable arrangement. Original ONKA quick connectors offer convenience in installation and 100% connection reliability.
Technical parameters
Cross-section of individual connected cable up to: 70mm2
Color: gray
Main housing insulation material: polyamide (PA6.6)
Contact/bridge material: CK45 steel/copper
Connection position: side / side
Rated voltage: 1000V
Rated current: 192A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
